INSULATING JOINT AND CATHODIC PROTECTION MATERIALS

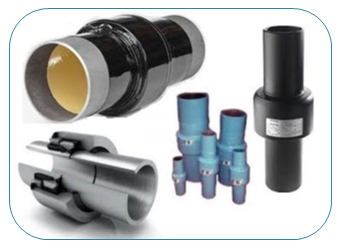

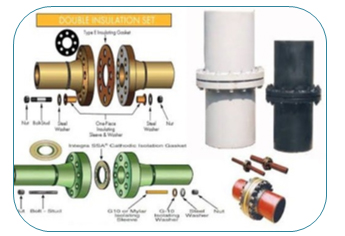

The insulating Joints is a new generation developed product to resolve use problems of old insulating flange. It is the essential pressure component necessary for steel pipeline cathodic protection system, broadly applicable to steel pipeline cathodic protection systems. Our companies insulating connectors adopts a unique design based on referencing foreign latest product structure to overcome problems of inadequate rigidity, prone to leak, unable to be buried under ground, short service life, etc. The insulating connectors have realized buried parts maintenance-free function and allow a service life matching the pipelines

MATERIAL  :    API 5L-A, B, X42, X46, X52, X56, X60, X65, X70, X80 & N#

                         ASTM A106, A105, A333, A335, A53, A500. A513, A252, A178, A214

                         A153, A589, A226, A795, SA192, SA210, T11, T22, T23, T24, T91,

                         T92, T911, T122, P11, P12, P22, P5, P9, P91

STANDARD  : ASTM, ASME, API

MEDIUM      :  Oil, Gas, Water, Chemical feed, Mineral slurry

PRESSURE CLASS : 150# ~ 2500#

RESISTANTANCE  : Insulating Resistance Value ≥10MΩ @DC1000V,
                                 Maximum Voltage ≥3KV

Insulating Intensity : No breakdown or arc for one minute @2500V 50Hz, Hydraulic Pressure Testing Pressure: 1.5 times of designed pressure, Air-tight Testing Pressure: Equivalent to designed pressure

Non-destructive Testing: All the butt-connectors are 100% ray-detected according to JB4730-94; other pressure welding seams are 100% magnetic power detected.

Groove : Adopt API 5L Standard

DIA METER SIZE : As per customer requirements

OTHER MATERIALS  : Monel, Nickel, Inconel, Hastelloy, Copper, Brass, Bronze,
                                     Titanium,Tantalum, Bismuth, Aluminum, High Speed Steel,
                                     Zinc, Lead, etc.

COATING STD : FBE, EPOXY
